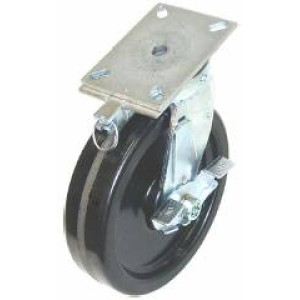

9400 Series

• Single ball bearing, precision machined, hardened & heat treated, "Kingpinless style sealed raceway." (3.43" diameter raceway with 1/2” ball bearings.)
• Top plate and yoke assembly : AISI 1045 drop forged steel. Legs are formed from 23/64" forged steel and are double welded for strength.
• Eliminates problems associated with kingpin failure.
• Corrosion-resistant zinc plated finish.
• 3/4" diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway.
• Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, Extra heavy-duty material handling carts, buggies & platform trucks, ground support equipment, Extra heavy-duty warehouse and manufacturing plant applications, A frames, etc.
